Ceramic Fiber module

email.png livechat.png
Share With :
  • Ceramic Fiber module
  • Ceramic Fiber module
  • Ceramic Fiber module
  • Ceramic Fiber module
■ Feature

Product Description:

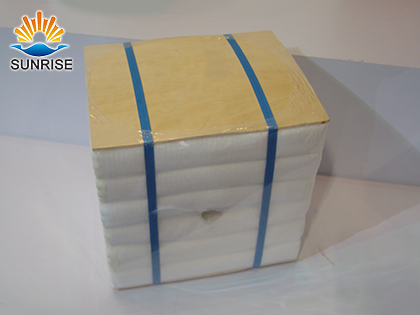

Sunrise ceramic fiber module is a pre-compression and insulation unit made by folding and compressing double-sided needling fiber blanket, adding anchor drawings and constraint accessories.In the process of processing, a certain proportion of compression quantity is maintained to ensure the expansion of the ceramic fiber folding modules in the compression direction after the completion of the ceramic fiber folding wall lining, so that the modules are squeezed into a seamless whole, effectively compensate the thermal shrinkage of the fiber, and improve the overall adiabatic performance of the furnace lining.Ceramic fiber folding modules can be directly fixed on the steel plate anchorage nails in the industrial furnace shell through various forms of enclosures.The product has white color, regular size, good fire resistance and heat insulation effect, simplifies and speeds up the kiln construction, improves the furnace lining integrity, and promotes the kiln masonry technology.According to the different use environment, the module working face can be coated with surface treating agent to improve the module high temperature performance.


Application:
♦ Thermal insulation lining of cracking furnace in petrochemical industry;
♦ Steel ladle cover, well cover, heating furnace, sheet annealing furnace, continuous annealing furnace, roller bottom furnace, hood furnace, flue and other heat preservation and insulation;
♦ Lining in nonferrous metallurgy industry;

♦ Lining insulation for kilns in building materials industries such as ceramics and glass;
♦ Industrial heat treatment furnace lining insulation, heat preservation and heat insulation for large boilers;
♦ Incineration equipment and chimney lining.

Characteristic:
♦ Excellent thermal insulation performance, low thermal conductivity, good energy-saving effect;
♦ Good thermal shock resistance and thermal airflow shock resistance;
♦ Excellent elasticity: the module is in the pre-pressure state. After the lining is laid, the expansion of the module makes the lining seamless and compensates the shrinkage of the fiber lining, so as to improve the adiabatic performance of the fiber lining and the overall performance is good;
♦ Light weight makes the furnace structure light;
♦ The anchoring parts are arranged on the cold wall lining surface, which can reduce the material requirements of the anchoring parts;
♦ Easy to install and use: the lining does not need to be dried and maintained, so it can be put into use immediately after installation, shortening the time of furnace building.

■ Technical Data

Type

Common1100

Standard1260

HA1300

HZ1430

Operating Temperature()

950

1100

1200

1300

Density kg/m3

190-240

Al2O3

40-43

44-47

51-53



Al2O3+SiO2

96

99

99



Al2O3+SiO2+ZrO2









ZrO2







15-17

Fe2O3

0.5

0.2

0.2

0.2

Na2O+K2O

0.5

0.25

0.25

0.25

Common Size(mm)

300*300*300mm;

300*300*250mm;

300*300*200mm;

Other size can customized

Package

Cartons
