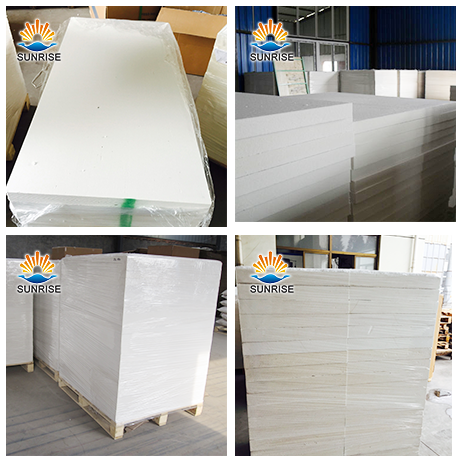

Ceramic Fiber Board

  • Classification temperature ( °C) : 1000
  • Linear shrinkage (%, °C x 24 hrs) : 1.3 (900)
  • Modulus of rupture (kg / cm2) : 5
  • Shot content (>212 micro meter) (%) : 18
  • Available size ( mm/pc ): 900 / 1000*600*6 / 12.5 / 20 / 25 / 30 / 40 / 50
  • Shot content (>212 micro meter) (%) : 18
email.png livechat.png
Share With :
  • Ceramic Fiber Board
  • Ceramic Fiber Board
  • Ceramic Fiber Board
■ Feature

Product Description:
Sunrise ceramic fiber board is made of ceramic fiber bulk as the main raw material through fiber treatment, slag removal, vacuum molding and other processes.The product is hard in texture, strong in toughness and strength, light in weight and resistant to heat shock and spalling, with excellent resistance to wind erosion.Low shot content, accurate size, arbitrary shear, heating without expansion, convenient construction.Good uniformity of bulk density, hardness and strength from inside to outside.It is widely used in all kinds of furnace density interior and exterior wall fire insulation, as well as heat insulation of high temperature air scour part, it is the ideal insulation and energy saving material.


Application:
♦ Industrial kiln wall lining, masonry insulation layer;
♦ High temperature kiln lining, kiln car, furnace door baffle, furnace temperature partition;
♦ Heat insulation and heat preservation for high temperature and high heat equipment;
♦ Aerospace and shipbuilding industries heat insulation, fire, sound insulation, insulation;
♦ Fire damper plate and fire damper door in kiln.


By industry:
♦ Steel industry: expansion joints, backing insulation, heat shields and cast cross insulation;
♦ Non-ferrous metal industry: backlined thermal insulation materials, tundish and flume cover, used for casting copper and copper-containing alloys;
♦ Ceramic industry: lightweight kiln car structure and furnace hot surface lining, furnace temperature separation and fire protection materials;
♦ Glass industry: molten pool back lining insulation, burner block;
♦ Kiln building: hot face refractory (instead of fiber blanket), heavy refractory backing, expansion joints;
♦ Light industry: Lining of industrial and domestic boiler combustion chamber;
♦ Petrochemical industry: hot surface material for high-temperature furnace lining;
♦ Building materials industry: cement rotary kiln and other equipment insulation.


Characteristic:
♦ Fibers are bonded by binder.
♦ Low density and low thermal conductivity.
♦ Shorter heat up and cool down time.
♦ Resilience and resistance to thermal shock.
♦ Greater mechanical strength.
♦ Can withstand gas flow velocity of 30 m/sec.
♦ Even density, thickness.
♦ Flexible and easy to cut or install.
♦ Asbestos free

■ Technical Data

Phyiscal and chemical index:

Type Standard1260 HA1300 HZ1430
Operating Temperature(℃) 1100 1200 1350
Density kg/m3 280-320
Coefficient of thermal conductivity W/(m.k) 0.085(W/m.k) 400℃
0.132(W/m.k) 800℃
0.18(W/m.k) 1000℃
LOI(%) <8
Al2O3 42-45 52-53 32-33
pAl2O3+SiO2 ≥98 ≥99
Al2O3+SiO2+ZrO2     99
ZrO2     ≥15
Fe2O3 ≤1.0 ≤0.3 ≤0.2
Na2O+K2O ≤0.5 ≤0.3 ≤0.2
Common Size(mm) 1000*600*10-100;
1200*500*10-100;
1200*1000*10-100,
Other size can customized
Package Wooden pallet and then polyethylene film is placed over it, finally the package is tied up with strips.
